Drone-in-a-Box Systems
Autonomous Deployment | 24/7 Operations
Fully autonomous drone deployment stations that enable persistent surveillance and inspection without human intervention. Our DIB systems handle automatic launch, landing, charging, and data transmission.
Single-Drone Station

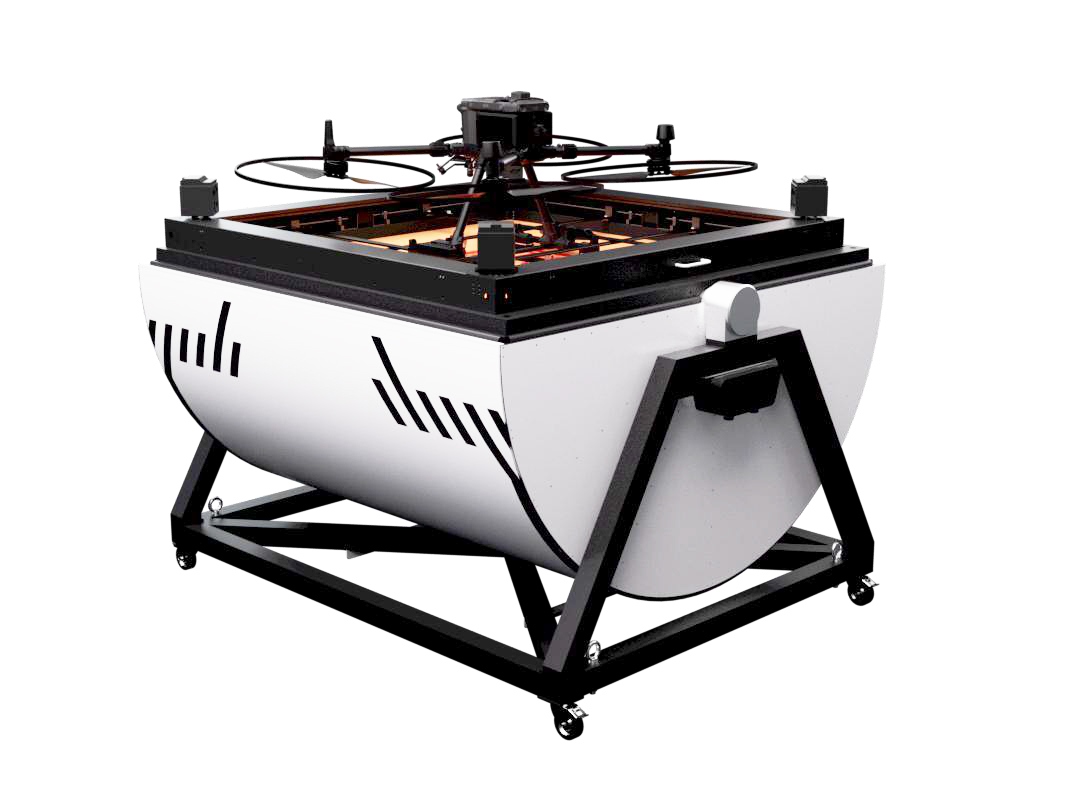

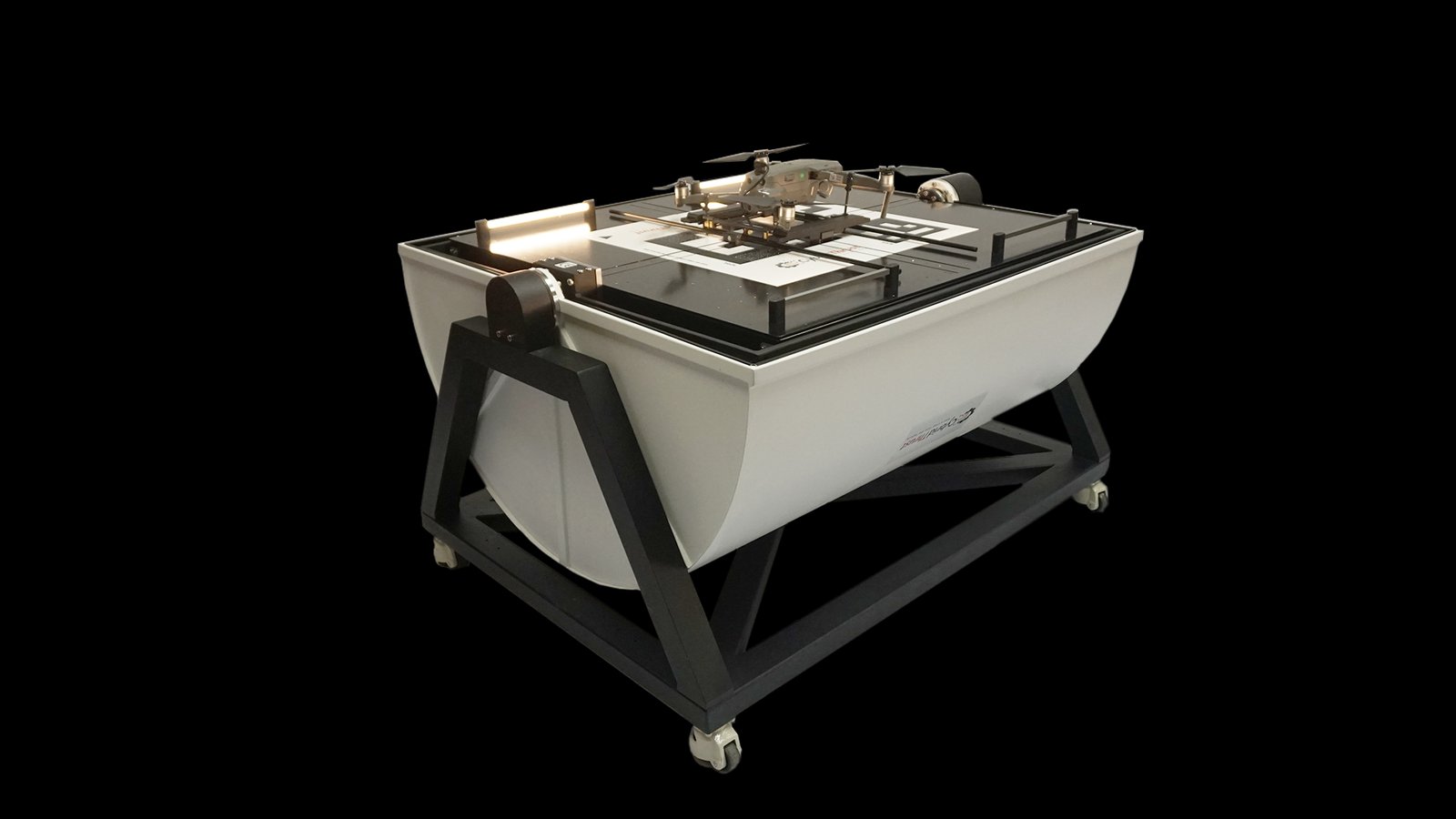

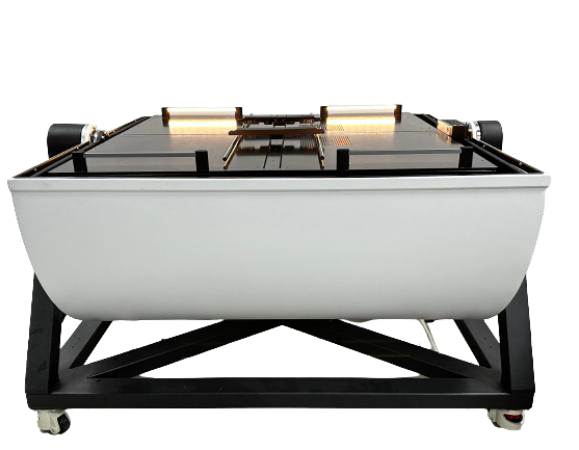

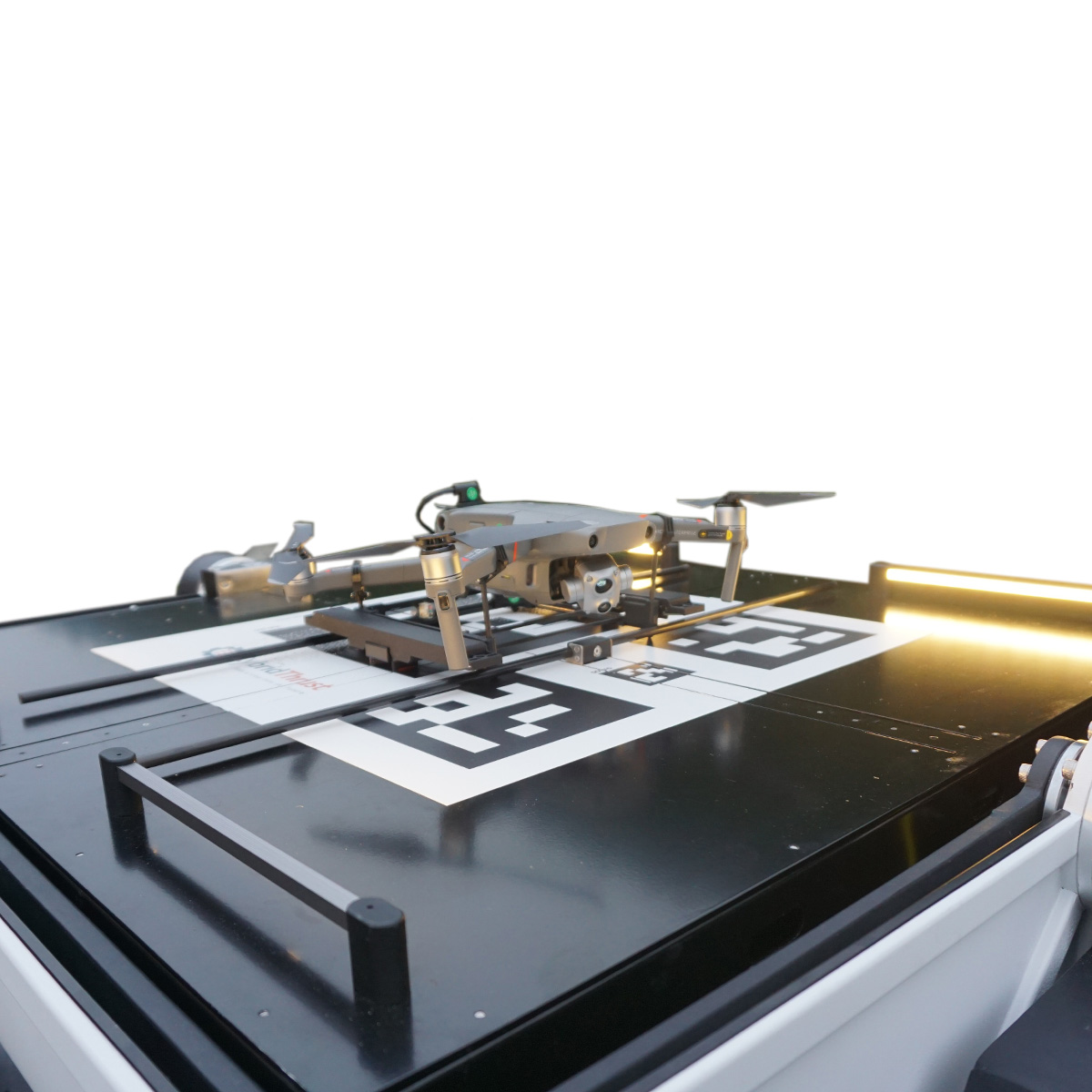

CT-Nest Solo
Compact autonomous deployment station designed for single-drone operations. Ideal for perimeter security, routine inspections, and small-to-medium site coverage requiring regular aerial surveillance.
- Weight
- 86 kg
- Size (open)
- 1067 × 890 × 510 mm
- Size (closed)
- 1067 × 890 × 934 mm
- Max. power
- 450 W
- IP rating
- IP54 (optional IP66 configuration possible)
- Input voltage
- AC 100–240 V
- Working temp.
- −20 °C to 50 °C
- Compatible drones
- DJI M3E / M4E & other same-size models
- Flight endurance (30 min)
- Up to 10 km distance
- Battery capacity
- 4S
- Communication
- Ethernet by default, 4G/5G & fiber optional
- HVAC
- AC 100–240 V · Compressor, PTC · 400 W
45 min
4G/5G
IP65
230V AC
Key Features
- Weatherproof enclosure for year-round outdoor deployment
- Automatic launch and precision landing system
- Integrated battery swap mechanism
- Remote monitoring and mission scheduling
- Solar power option available
Dual-Drone Station

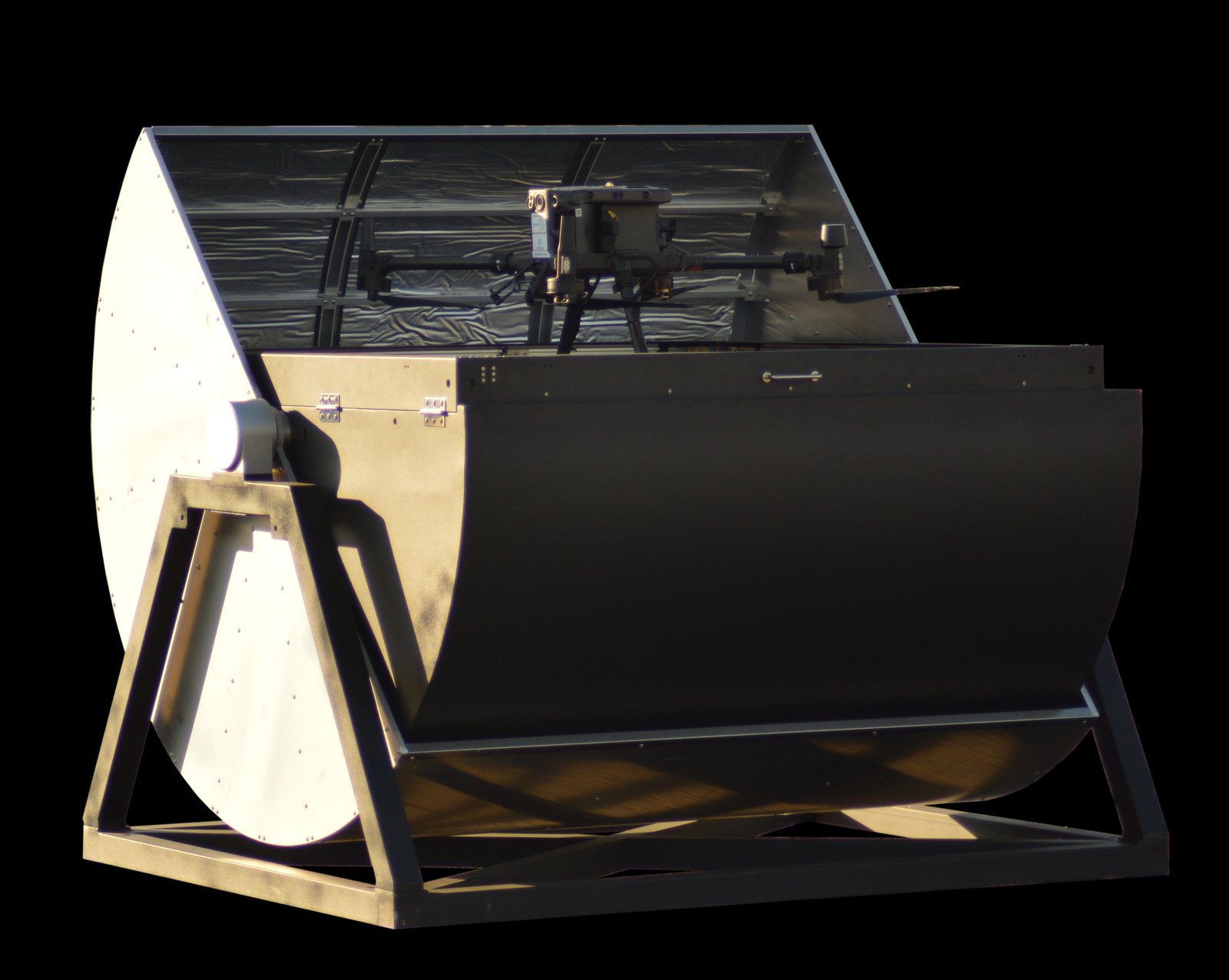

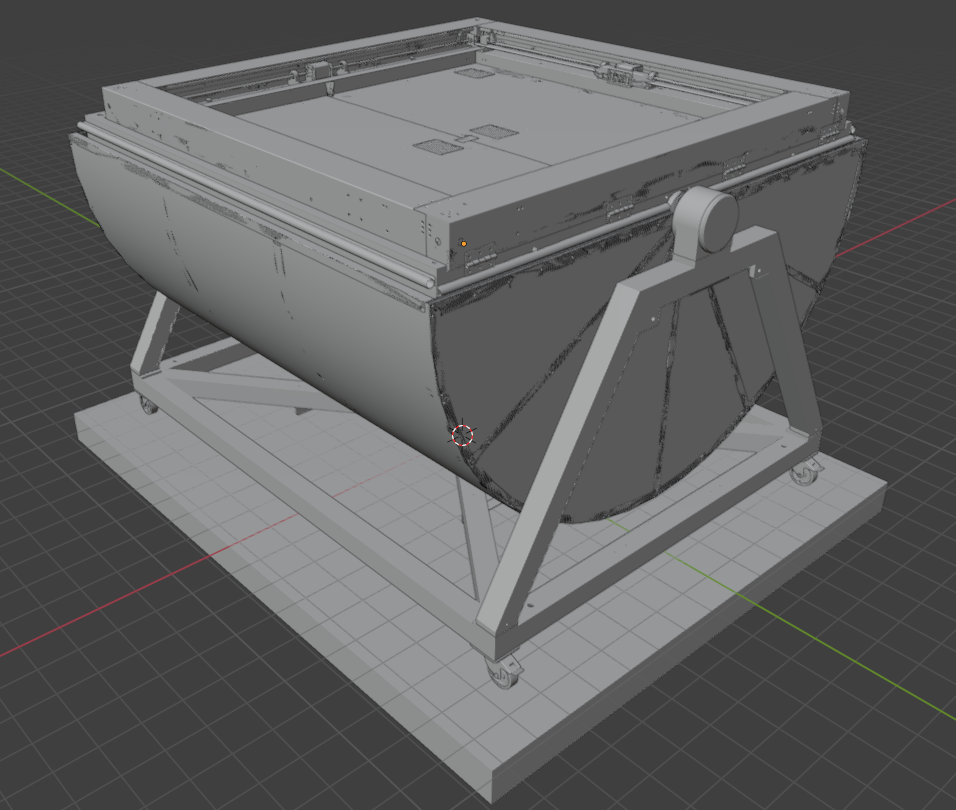

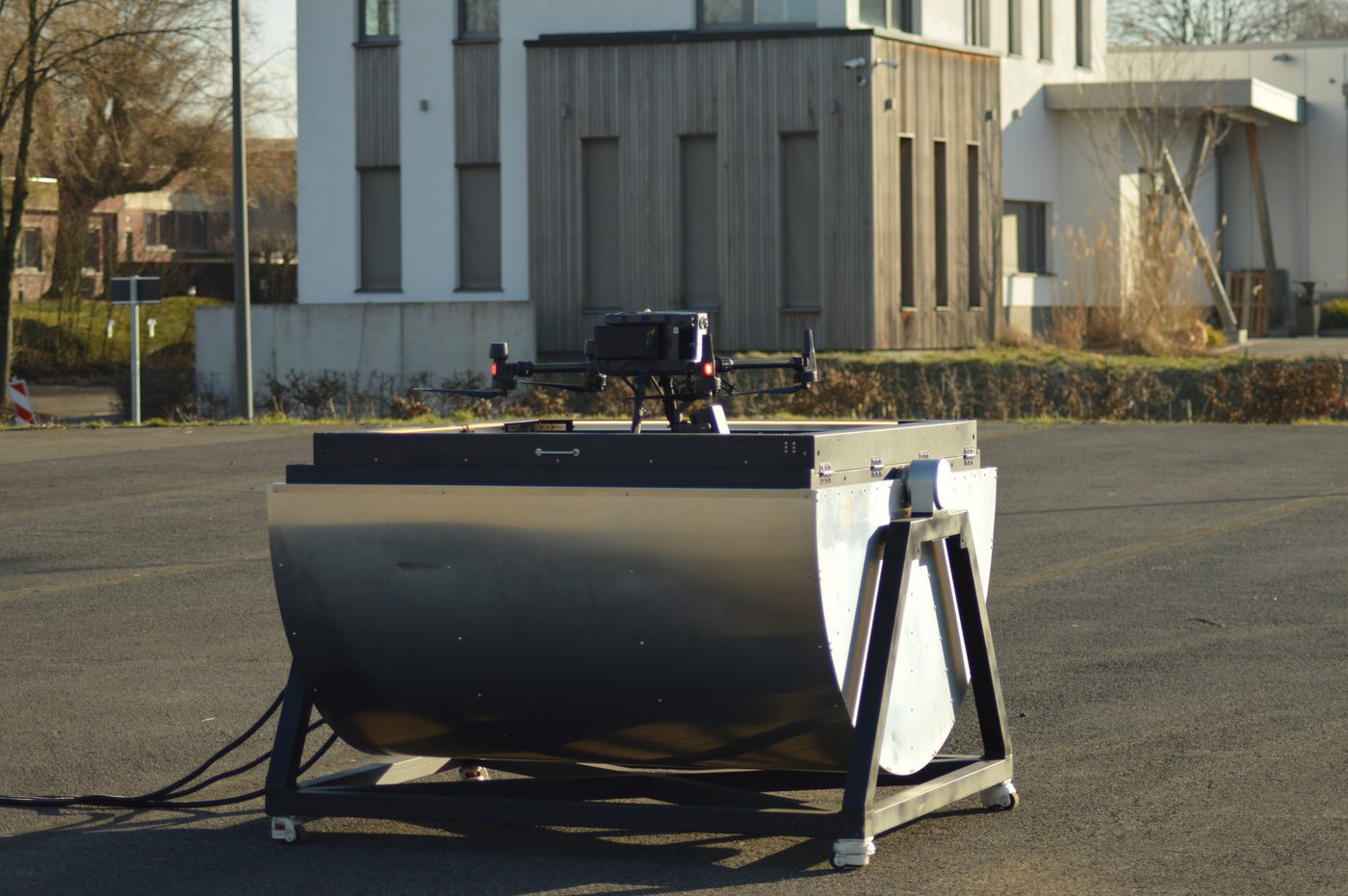

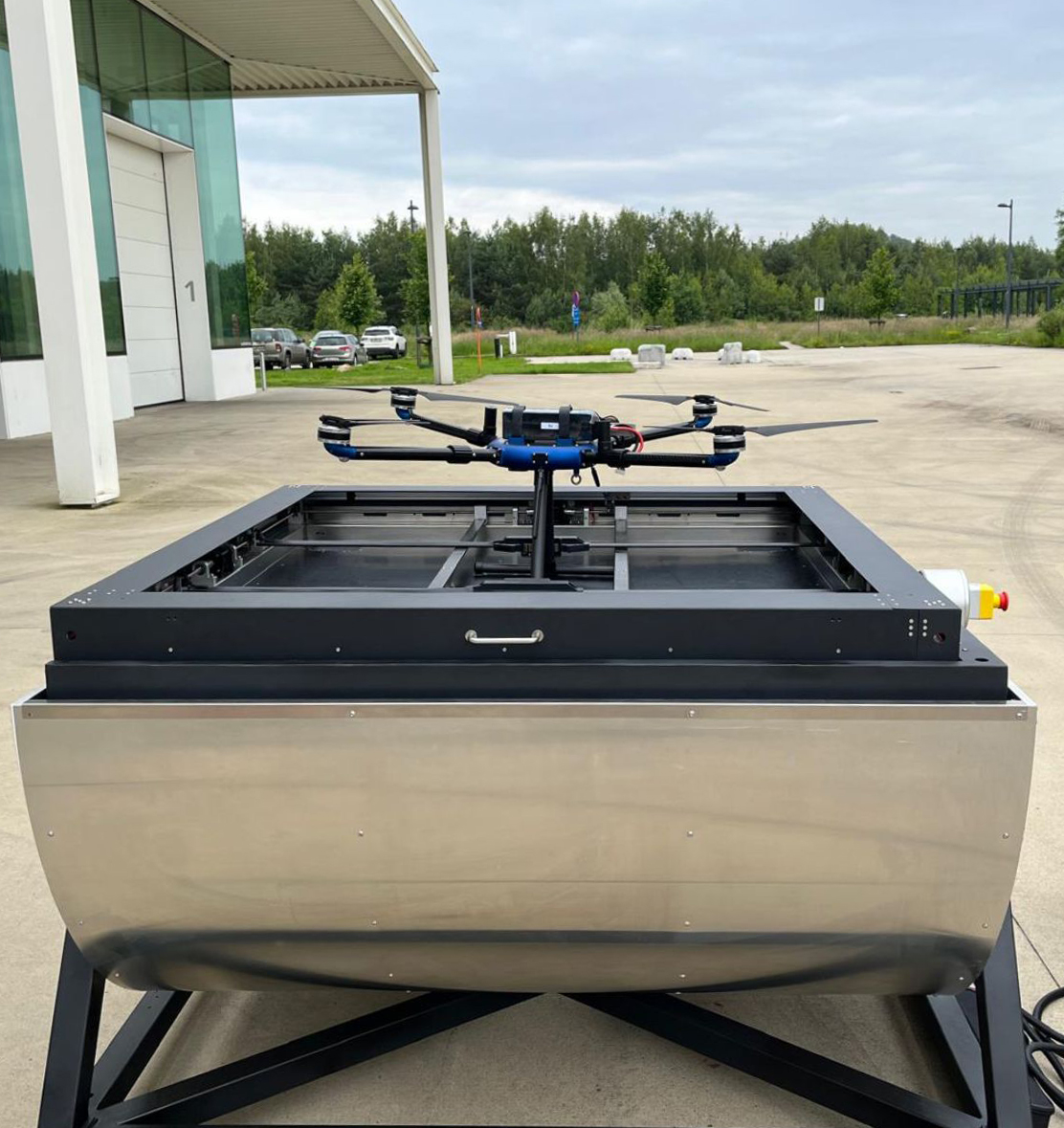

CT-Nest Duo
Advanced dual-drone station with hot-swap capability enabling near-continuous aerial coverage. One drone operates while the other charges, ensuring 24/7 persistent surveillance.
- Weight
- 330 kg
- Size (open)
- 1730 × 1520 × 1220 mm
- Size (closed)
- 1730 × 1520 × 1710 mm
- Max. power
- ≤ 3000 W
- Protection rating
- IP55 (optional IP66 configuration possible)
- Input voltage
- AC 100–240 V
- Working temp.
- −20 °C to 50 °C
- Compatible drones
- DJI M300/M350 & other same-size models
- Flight endurance (30 min)
- Up to 20 km distance
- Battery capacity
- 14S
- Communication
- Ethernet by default, 4G/5G & fiber optional
- HVAC
- AC 100–240 V · Compressor, PTC · 2800 W
< 2 min
Satellite
IP66
Hybrid
Key Features
- Hot-swap capability for continuous operations
- Satellite uplink for remote locations
- Dual-redundant charging systems
- AI-powered mission optimization
- Integrated data processing and storage
Multi-Drone Hub

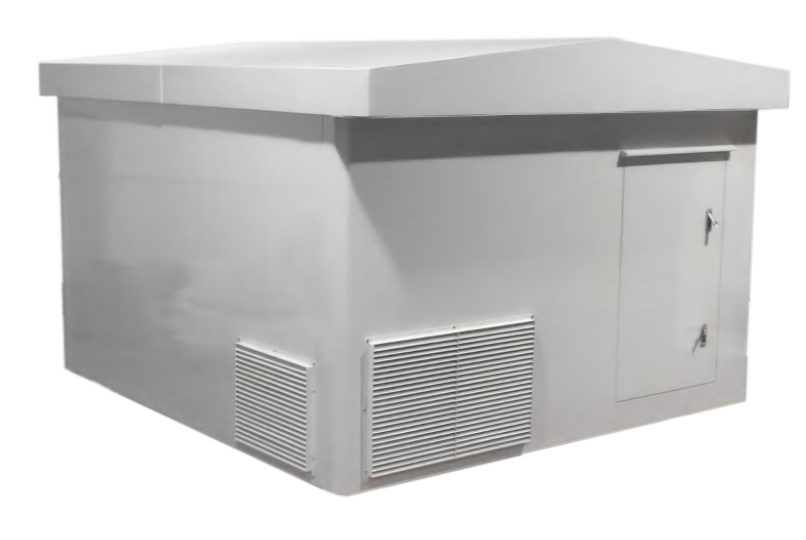

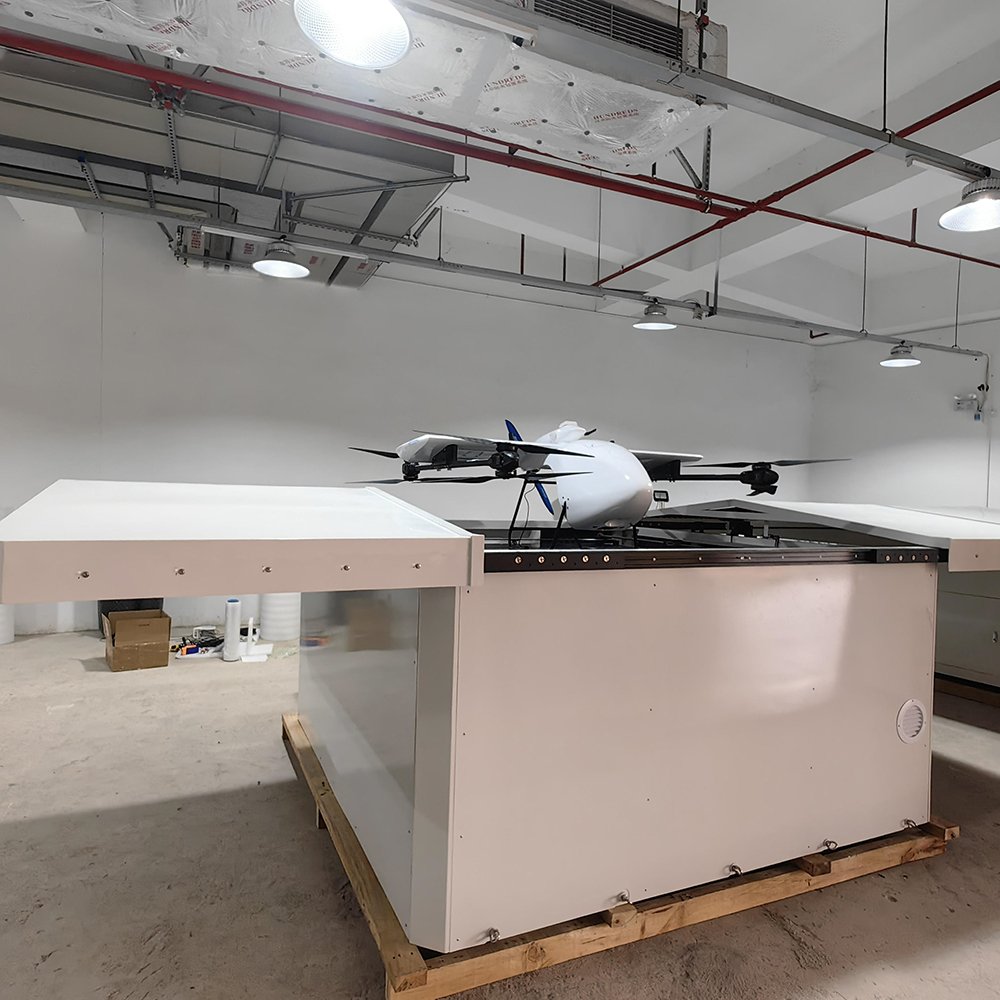

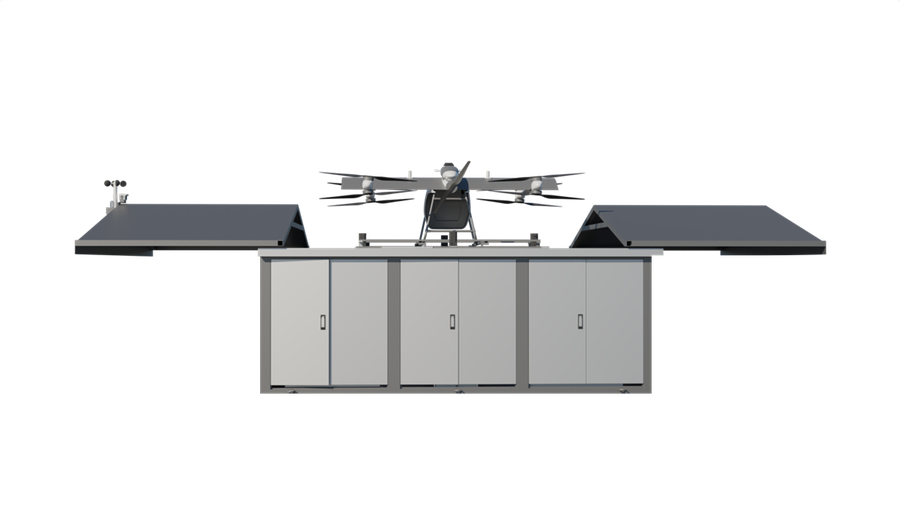

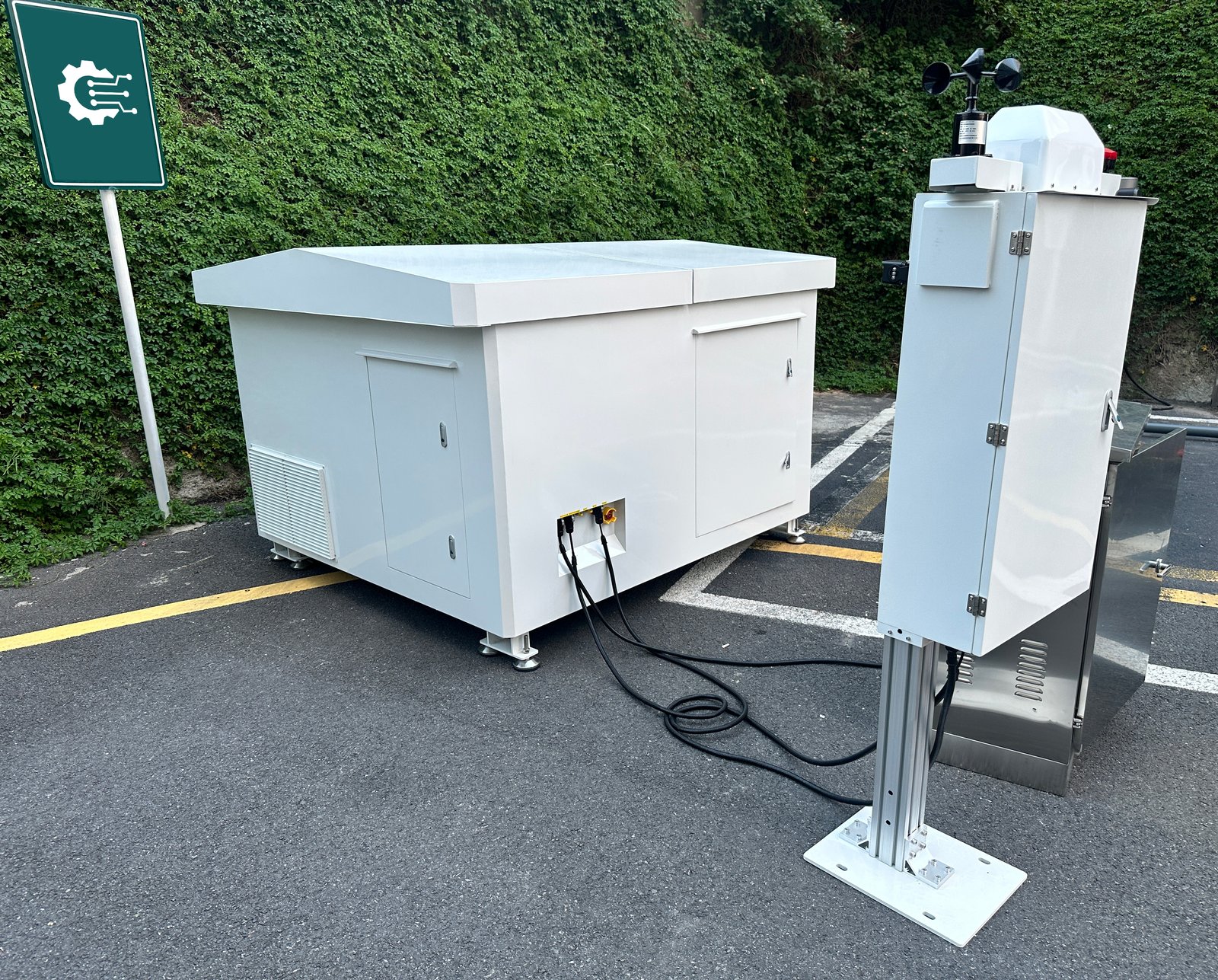

CT-Nest Fleet
Enterprise-grade multi-drone hub capable of managing up to 6 UAVs simultaneously. Designed for large-scale industrial sites, critical infrastructure, and coordinated surveillance operations.
- Weight
- 550 kg
- Size (open)
- 3613 × 1911 × 1447 mm
- Size (closed)
- 2026 × 1911 × 1447 mm
- Max. power
- ≤ 3000 W
- Protection rating
- IP54 (optional IP66 configuration possible)
- Input voltage
- AC 100–240 V
- Working temp.
- −20 °C to 50 °C
- Compatible drones
- DJI M400 & other same-size models
- Flight endurance (30 min)
- Big multicopter (e.g. M400) 20 km · VTOL 100 km
- Battery capacity
- 14S
- Communication
- Ethernet by default, 4G/5G & fiber optional
- HVAC
- AC 100–240 V · Compressor, PTC · 2800 W
6 UAVs
Integrated
IP67
Industrial
Key Features
- Coordinated multi-drone mission planning
- Integrated command center with live feeds
- Automated fleet health monitoring
- Scalable architecture for expansion
- Enterprise security and encryption
Trailer-Mounted
CT-Nest Mobile
Rapidly deployable mobile drone station mounted on a ruggedized trailer. Perfect for temporary operations, emergency response, event security, and construction site monitoring.
< 15 min
Multi-band
Off-grid
Generator
Key Features
- Rapid deployment and relocation capability
- Self-contained power generation
- All-terrain trailer with leveling system
- Temporary or permanent installation options
- Ruggedized for harsh environments

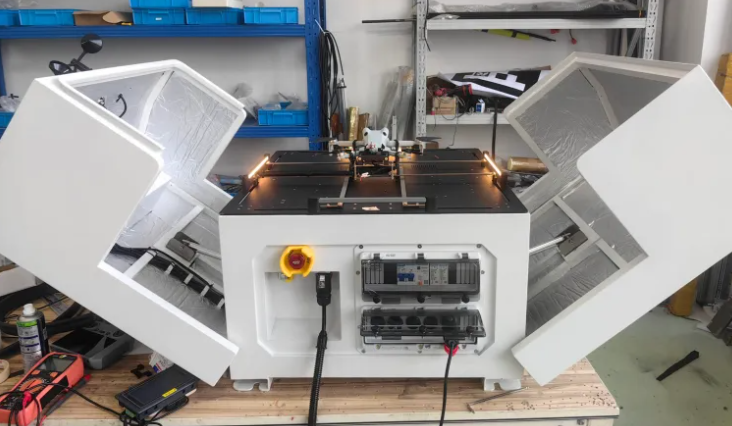

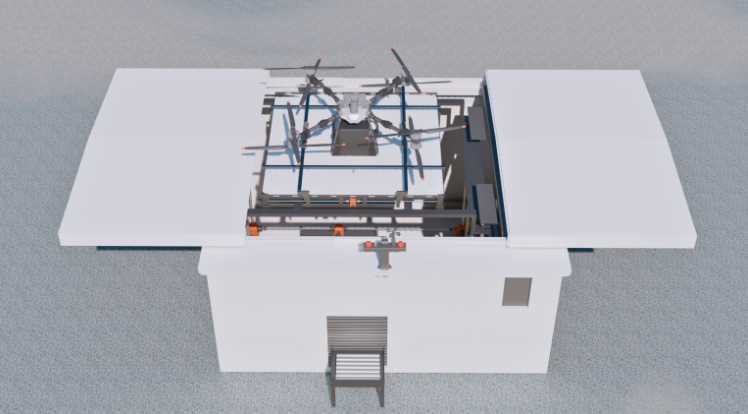

Charging Station for Hydrogen-Powered Drones
Extended Endurance | Zero Emissions | Full Autonomy
Automated hydrogen refueling infrastructure enabling extended flight endurance for inspection, mapping, and surveillance missions. Supports fully autonomous 24/7 operations with zero manual intervention and zero emissions.

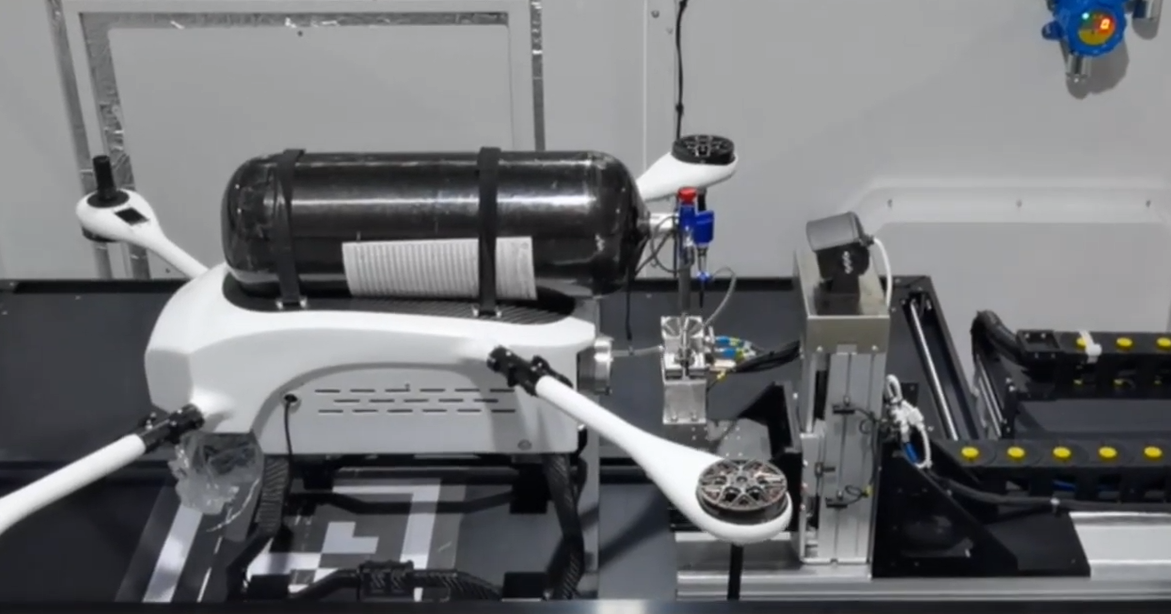

H2 Auto-Refueling Dock
Fully automated hydrogen refueling system with IP55 rating for outdoor deployment. Supports multiple drone types with customizable refueling protocols.
- Automated refueling
- IP55 rated
- Outdoor deployment
- Multi-drone compatible

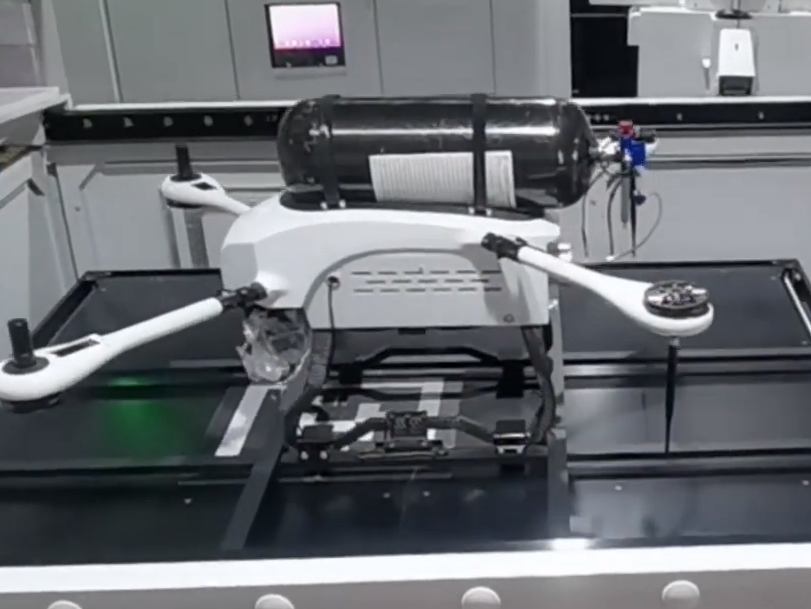

Precision Stowage System
Advanced drone locking and positioning system ensuring safe takeoff and landing operations without manual handling requirements.
- Auto drone locking
- Safe takeoff/landing
- No manual handling
- Precision positioning

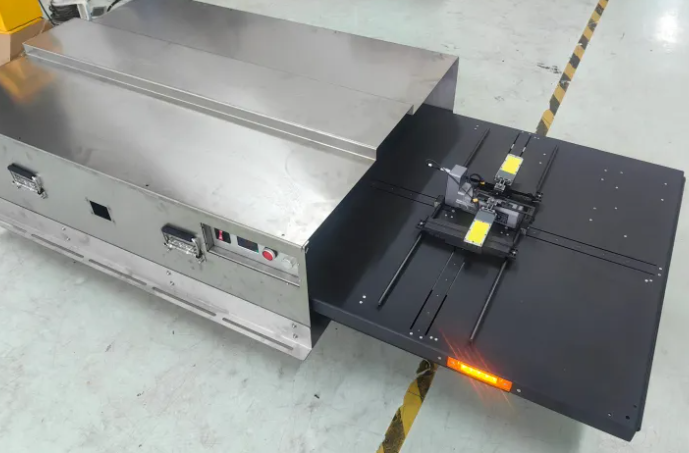

Smart Power Control
Intelligent power management system with automated startup/shutdown sequences and preset flight schedule support for remote operations.
- Automated startup/shutdown
- Preset flight schedules
- Remote management
- Energy optimization
Custom Integration
Tailored integration services for specific drone platforms, including OEM partnerships and turnkey solution development.
- Tailored to specs
- OEM partnerships
- Turnkey solutions
- Full support
